CPU COMPONENTS
Sr.No Name Image Specification
1 Register 1. General-purpose registers (e.g., AX, BX in x86 architecture)
2. Special-purpose registers (e.g., Program Counter, Stack Pointer)
3. Size: 8-bit, 16-bit, 32-bit, or 64-bit

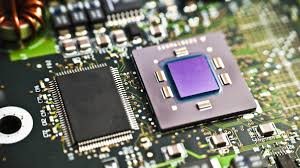

2 Cache Memory Cache Memory 1. L1 Cache (Fastest, smallest, ~64KB per core)
2. L2 Cache (Larger, slower than L1, ~256KB to 2MB per core)
3. L3 Cache (Shared among cores, ~4MB to 128MB)
3 Clock Generator clock generator Measured in GHz (e.g., 3.5 GHz means 3.5 billion cycles per second).
4 Buses Buses 1. Data Bus Width: 32-bit, 64-bit (determines how much data is processed at a time).
2. Address Bus Width: Determines the amount of memory the CPU can address (e.g., 32-bit can address 4GB of RAM, 64-bit can address much more).
3. Control Bus: Manages signals for operations like read/write.
5 Floating Point Unit floating point unit Operates at the same speed as ALU but optimized for floating-point math.
6 Integrated Graphics Processing Unit igpu Varies based on CPU model, e.g., Intel UHD, AMD Radeon Vega.
7 Thermal Design Power thermal design power Measured in watts (W), e.g., 65W, 125W.

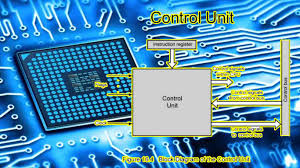

8 Control Unit control unit Works at the same speed as the CPU clock, handles instruction sequencing.
9 Arithmatic Logic Unit alu 32-bit, 64-bit, or 128-bit processing width.

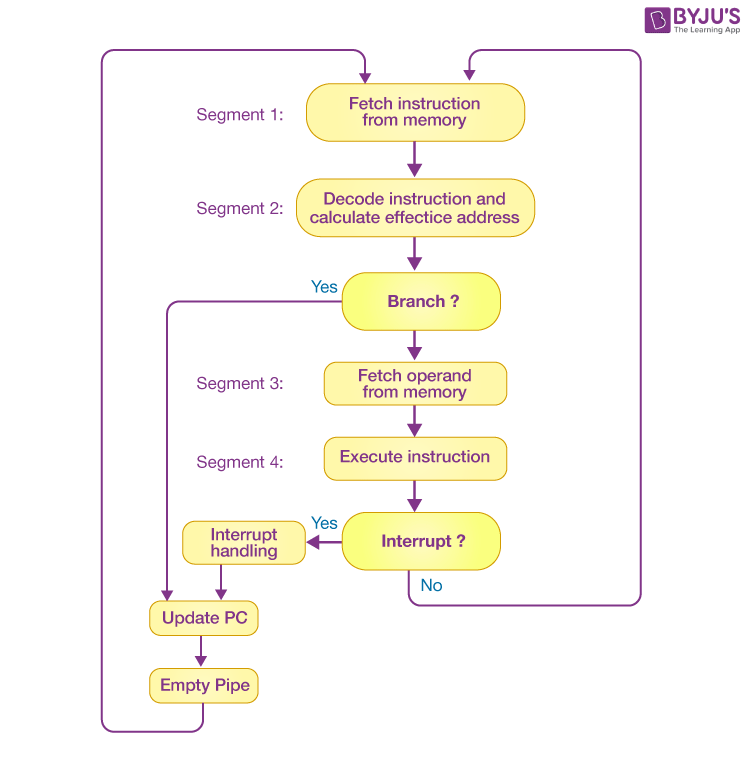

10 instruction Pipelines instruction pipeline 1. 5-stage pipeline (basic CPUs).
2. 10–20 stage pipeline (modern CPUs).
11 Load-Store Unit load-store 32–128 buffer entries for high-performance CPUs.
12 Vector Processing Unit vector processing Includes MMX, SSE, AVX instruction sets.

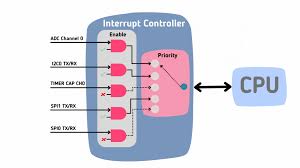

13 Inturrupt Controller inturrupt controller Advanced Programmable Interrupt Controller (APIC) for multi-core systems.

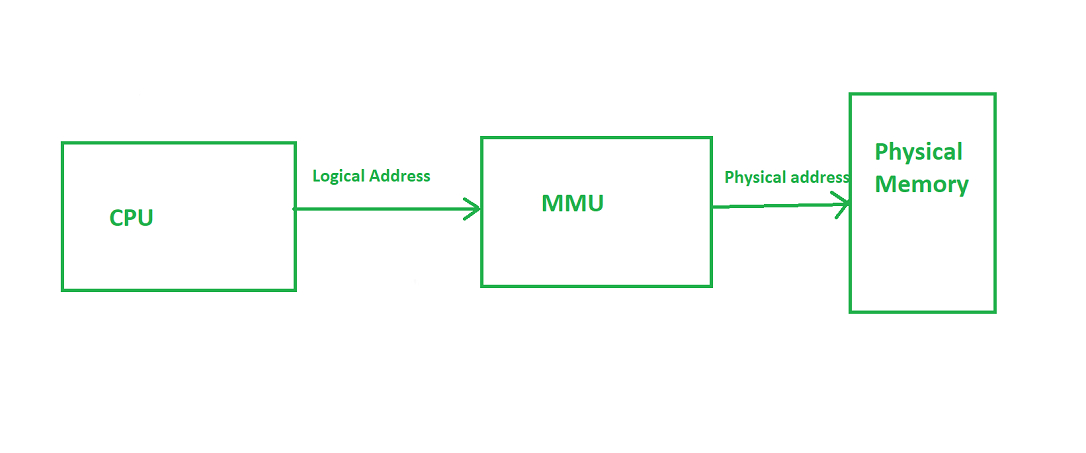

14 Memory Management Unit memory management Uses a Translation Lookaside Buffer (TLB) for fast memory translation.
15 Prefetch Unit prefetch unit Uses speculative execution to boost performance.
